Clamp Meter

  • LC-202
  • Designed to meet IEC-61557-13:2013
  • Insulate the influence of high external low-frequency magnetic fields
  • Maximum AC 1000A current measurement with 100μA resolution
  • 5000 count display with True-RMS reading

Measurement Specification

FunctionRangeResolutionAccuracy
Clamping AC voltage 1000V 0.1V ±(1.5%+5d)
Clamping AC current 600A
500.0A
50.00A
5.000A
500.0mA		 1A
0.1A
10mA
1mA
100μA		 ±(1.5%+3d)
±(1.5%+3d)
±(1.5%+3d)
±(1.5%+3d)
±(1.5%+3d)
Hz 45Hz-66Hz 1Hz ±(1%+2d)
Volts AC 1000V 0.1V ±(1.5%+2d)
Volts DC 1000V 0.1V ±(1%+2d)
Resistance 500.0Ω
5.000kΩ
20.00kΩ 		0.1Ω
1Ω
0.01kΩ 		±(1%+2d)
±(1%+2d)
±(1%+2d)
Safety 1000V CAT III/ 600V CAT IV

General Specification

Dimension65mm (W) x 225mm (L) x 43mm (D)
Weight380g
Jaw Opening12.5 mm dia.
Battery Type2 x AA (IEC LR6)
Battery Life 400 hours (Nominal)
Operating Temperature & Humidity -10 °C to 50 °C (14 °F to 122 °F)
10 % to 90 % RH
Storage Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating Altitude2000 meters above mean sea level
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz
IEC 68-2-27, 50 g, 11 ms
Electromagnetic Environment IEC/EN 61326-1: Portable
Safety IEC/EN 61010-1: Pollution Degree 2s

  • AC-201
  • Maximum AC 1000A current measurement
  • AC 1000V non-contact clamping voltage measurement
  • 5000 count display with True-RMS reading and inrush current limiter

Measurement Specification

FunctionRangeResolutionAccuracy
Clamping AC voltage 1000V 0.1V ±(1.5%+5d)
Clamping AC current 600A
500.0A		 1A
0.1A		 ±(1.5%+3d)
±(1.5%+3d)
Hz 45Hz-66Hz 1Hz ±(1%+2d)
Volts AC 1000V 0.1V ±(1.5%+2d)
Volts DC 1000V 0.1V ±(1%+2d)
Resistance 500.0Ω
5.000kΩ
20.00kΩ 		0.1Ω
1Ω
0.01kΩ 		±(1%+2d)
±(1%+2d)
±(1%+2d)
Safety 1000V CAT III/ 600V CAT IV

General Specification

Dimension65mm (W) x 225mm (L) x 43mm (D)
Weight380g
Jaw Opening12.5 mm dia.
Battery Type2 x AA (IEC LR6)
Battery Life 400 hours (Nominal)
Operating Temperature & Humidity -10 °C to 50 °C (14 °F to 122 °F)
10 % to 90 % RH
Storage Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating Altitude2000 meters above mean sea level
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz
IEC 68-2-27, 50 g, 11 ms
Electromagnetic Environment IEC/EN 61326-1: Portable
Safety IEC/EN 61010-1: Pollution Degree 2s

  • ACD-203
  • Maximum AC/DC 1000A current measurement with 1mA resolution
  • AC 1000V non-contact clamping voltage measurement
  • 5000 count display with True-RMS reading and inrush current limiter

Measurement Specification

FunctionRangeResolutionAccuracy
Clamping AC voltage 1000V 0.1V ±(1.5%+5d)
Clamping AC current 600A
500.0A
50.00A
5.000A 		1A
0.1A
10mA
1mA 		±(1.5%+3d)
±(1.5%+3d)
±(1.5%+3d)
±(1.5%+3d)
Clamping DC current 600A
500.0A
50.00mA		 1A
0.1A
10mA		 ±(1.5%+3d)
±(1.5%+3d)
±(1.5%+3d)
Hz 45Hz-66Hz 1Hz ±(1%+2d)
Volts AC 1000V 0.1V ±(1.5%+2d)
Volts DC 1000V 0.1V ±(1%+2d)
Resistance 500.0Ω
5.000kΩ
20.00kΩ 		0.1Ω
1Ω
0.01kΩ 		±(1%+2d)
±(1%+2d)
±(1%+2d)
Safety 1000V CAT III/ 600V CAT IV

General Specification

Dimension65mm (W) x 225mm (L) x 43mm (D)
Weight380g
Jaw Opening12.5 mm dia.
Battery Type2 x AA (IEC LR6)
Battery Life 400 hours (Nominal)
Operating Temperature & Humidity -10 °C to 50 °C (14 °F to 122 °F)
10 % to 90 % RH
Storage Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating Altitude2000 meters above mean sea level
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz
IEC 68-2-27, 50 g, 11 ms
Electromagnetic Environment IEC/EN 61326-1: Portable
Safety IEC/EN 61010-1: Pollution Degree 2s

IR Thermometer

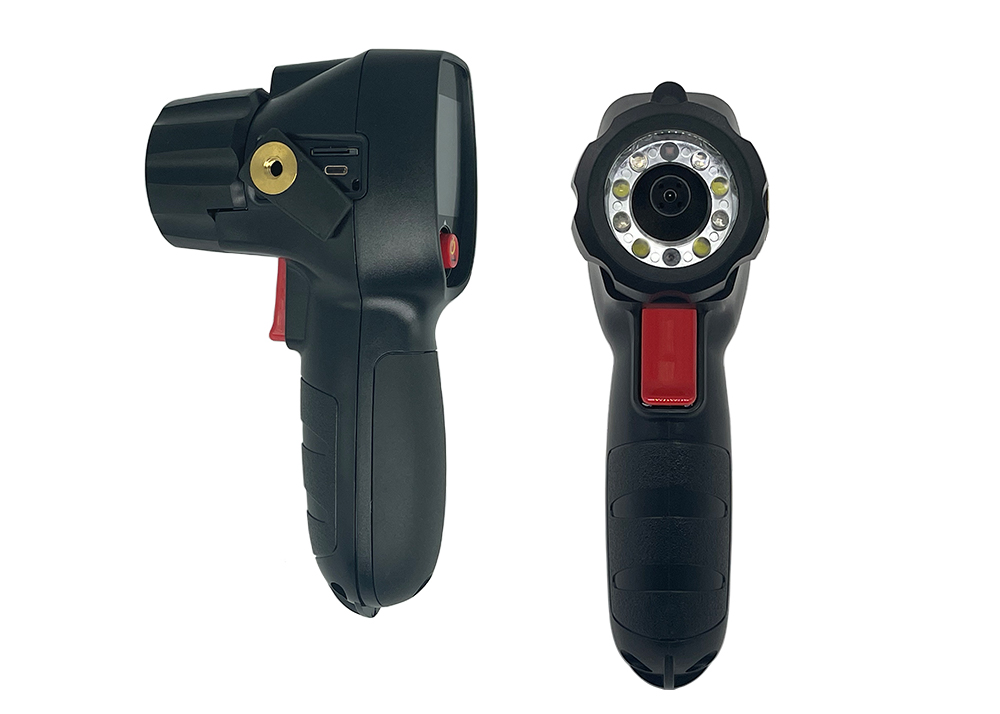

  • TG-301 / TG-501
  • 30:1 distance to spot ratio
  • 32x32 pixels of IR resolution
  • 5 UV/Blue LED as CFC leak detector
  • 1.77" LCD with 160x128 pixels of reslolution

Measurement Specification

ModelTG-301TG-501
Temperature Measurement Range -30 °C to 650 °C
(-22 °F to 1202 °F)		 -30 °C to 800 °C
(-22 °F to 1472 °F)
Measurement Accuracy ±1.5°C or ±1.5% of measurement value
±2.0°C (-10 ~ 0°C)
±3.0°C (-30 ~ -10°C)
Thermal sensitivity 0.1°C (0.2 °F)
Resolution 32x32 pixels
Field of View 30°x30°
D:S Ratio 30:1
(95% of signal strenth)
LCD Screen 1.77"
Response 300ms
Memory Type Micro SD card
Image Format Bitmap (BPM) image wiht Temparature and Emissivity
Color palettes Grey, Hot Iron, Rainbow
UV/Blue LED Dots - 5
White LED Dots - 5
Laser Indicator - Yes

General Specification

Model NameTG-301TG-501
Battery Life 16 hours
When laser and backlight are off
Battery Type3 x AA
Weight300g
Dimension51mm (W) x 185mm (L) x 100mm (H)
Operating Temperature & Humidity -10 °C to 50 °C (14 °F to 122 °F)
10 % to 90 % RH
Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operating Altitude2000 meters above mean sea level
Safety 1000V CAT III/ 600V CAT IV
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz
IEC 68-2-27, 50 g, 11 ms
Electromagnetic Environment IEC/EN 61326-1:2006
EN 61326-2:2006
Safety IEC/EN 61010-1: 2001
EN 60825-1 Class II

  • ILV-121 / ILV-151
  • 15:1 distance to spot ratio (ILV-151)
  • Measurements of maximum, minimum, average and maximum difference in one display screen
  • 5 white LED dots flashlight
  • One-hand control with joystick and trigger

Measurement Specification

ModelILV-121ILV-151
Temperature Measurement Range -30 °C to 500 °C
(-22 °F to 932 °F)		 -30 °C to 650 °C
(-22 °F to 1202 °F)
Measurement Accuracy ±1.5°C or ±1.5% of measurement value
±2.0°C (-10 ~ 0°C)
±3.0°C (-30 ~ -10°C)
Thermal sensitivity 0.1°C (0.2 °F)
D:S Ratio 12:1
(95% of signal strenth)		 15:1
(95% of signal strenth)
Response 300ms
UV/Blue LED Dots - 5
White LED Dots - 5

General Specification

ModelILV-121ILV-151
Battery Life 20 hours
When laser and backlight are off
Battery Type3 x AA
Weight300g
Dimension51mm (W) x 185mm (L) x 100mm (H)
Operating Temperature & Humidity -10 °C to 50 °C (14 °F to 122 °F)
10 % to 90 % RH
Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operating Altitude2000 meters above mean sea level
Safety 1000V CAT III/ 600V CAT IV
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz
IEC 68-2-27, 50 g, 11 ms
Electromagnetic Environment IEC/EN 61326-1:2006
EN 61326-2:2006
Safety IEC/EN 61010-1: 2001
EN 60825-1 Class II
